Clamcleat Cl704 Racing Junior Mk1 With Becket – Hard-Anodized

Description

Clamcleat CL704 Racing junior Mk1 with Becket Hard Anodized

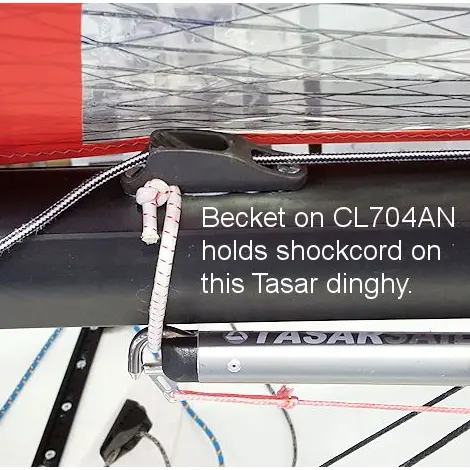

The becket holds the end of the rope under the cleat to allow rigging with a 2:1 advantage. Becket also holds shockcord & bungee.  No need for extra parts. Ideal for Cunningham adjustment.  Use as a deck cleat or fit onto masts, booms and curved surfaces.  Note sealant used between the cleat and boom, to avoid corrosion.
Manufactured from aluminium for a light weight and durable performance the CL704 is available in two finishes: 1. CL704 has a silver stove enamel finish for a cost effective, high quality coating. 2. CL704AN has a hard anodised finish to give a hard wearing surface.
Technical Details            Metric          Imperial
Rope Diameter                 3 – 6mm             1/8 – 1/4″
Material                Aluminium         Aluminium
Hole Centres                  66mm                2 5/8″
Length                          82mm                  3 1/4″
Width                          18mm                11/16″
Height                          24mm                15/16″
Bolt Size                  M5              #10-24. 3/16″
Screw Size                  4.8                No 10
Weight                         34gms     1.2oz
The purchaser is responsible for choosing the correct product for its particular application.
